Largest and Most Complete Inventory on the Pacific Coast

BELTED CHAIN AND COMPONENTS

AG-Webs' product offerings include both Belted Chains and a complete line of Sprockets, Rollers, Rods and Flites. Agricultural Distributing Inc. is California's original Belted Chain manufacturer with the largest and most complete inventory on the Pacific Coast. Our service and product offerings include custom fabrication, unique applications, and specialty chains.

Dedicated to Quality, Value, and Service

BELTED CHAIN QUALITIES

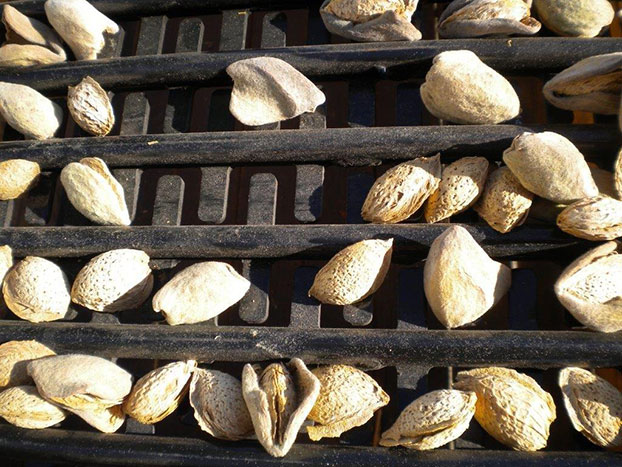

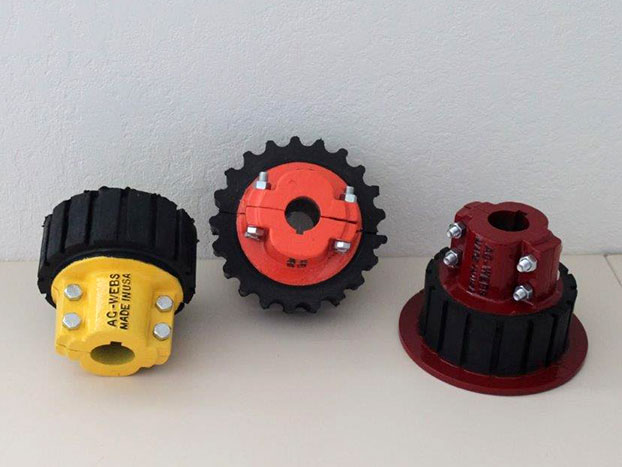

Belted chain takes on many unique features. The methods of drive include rod driven sprocket (positive), and belt driven which includes high profile belt drive and friction drive. Chains vary in width from 9 to 90 inches. The rod diameter covers the range of 5/16 to 5/8 inch. The gapping between rods on wide belts is maintained using additional center belts. The air gap between rods can vary from 3/16 of an inch to as much as 6 inches or more. The rods may be "cranked" up or down and used in various patterns to create holding pockets. The rods may be covered with soft rubber to prevent "bruising" or with hard rubber or split PVC to reduce the air gap. Molded rubber flites can be added for elevating. Belted chain can be designed and adapted to fulfill the requirements of nearly any harvesting and product handling need.

  • O.E.M. Replacement Parts
  • AG-Web Specialty Products
  • A complete line of "sealed", field proven, rollers for all harvester applications.
  • Urethane and high chrome drive sprockets for extended wear life.
  • Polyurethane and molded rubber parts for all agricultural applications.
  • On-site Design and Engineering

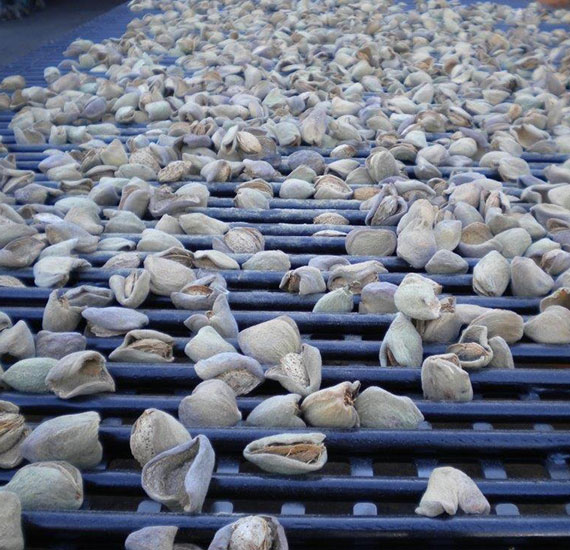

The Belted Chain has extensive uses in agricultural production, which includes -- Digging, Harvesting, Dirt Removal, Size Grading, Sorting, Conveying, De-Watering, De-Sticking, Bruise Protection, Loading, and Unloading.
The custom belted chain is ideal for the harvesting and handling of most agricultural products including -- Almonds, Walnuts, Pecans, Other Nuts, Tomatoes, Peppers, Lettuce, Melons, Cabbage, Cucumbers, Beets, Potatoes, Carrots, Root Crops, Onions, Garlic, Oranges, Prunes, Strawberry Seedlings, Flower Bulb Lifters, Seedling Washers, and Vine Seeds.

In addition to our Belted Chain line, our product offerings also include:

  • Amarillo Gear Heads
  • "Black Ace" Rollers and Parts
  • Racor Sentinel Protection Parts
  • Krptane Systems Urethane Wheels and Rollers

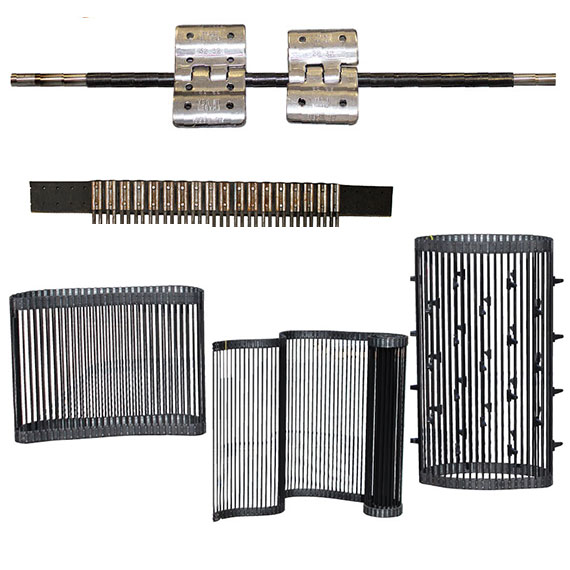

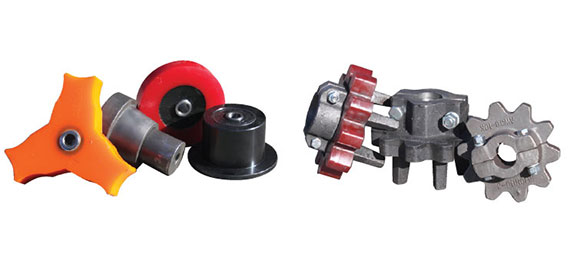

A Complete Line of Sprockets, Rollers, Rods and Flites

BELTED CHAIN COMPONENTS

We have dealers throughout Greater California.
Give us a call Toll-Free at 1-800-445-9327, and we will refer you to the closest one.

CONTACT INFORMATION

Our knowledgeable staff will assist you in product application and dealer contact information.

Custom Belted Chain Fabrication

GENERAL CONTACTS


SALES:

Tony Bradshaw
TBradshaw@agwebs.com

Tom Diaz
TDiaz@agwebs.com


MANAGEMENT:

General Manager: Joel Diaz

Production Supervisor: Rolando Beltran
Se Habla Español


OUR LOCATION:

Agricultural Distributing Inc.
665 North Pioneer Avenue
Woodland, CA 95776
